Multi-Sensor Displays

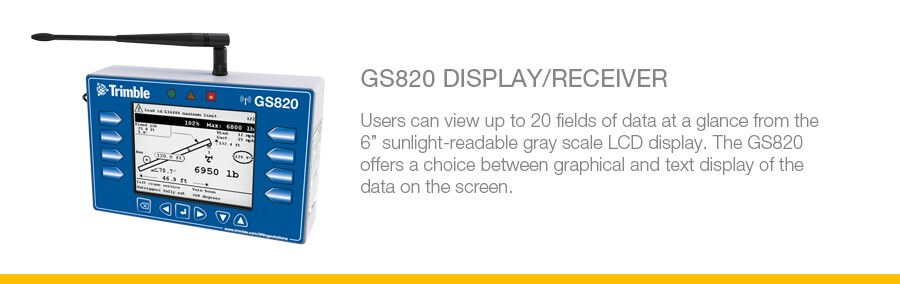

 Monitors up to 32 sensors simultaneously
 View up to 20 fields of data on the display
 Users can switch between graphical display of data and text only display of data
 Direct Sequence-Spread Spectrum-Two Way Communication
 Reception range: 4,300 feet / 1,300 meters
 User settable limits and alarms for each installed sensor
• USB port allows uploading of load charts/firmware or download of data logger content to USB drive
• Operators can set up to 99 parts of line
• Operating Temperature: -4°F to +158°F / -20°C to +70°C
• Monitors any combination of: Load Cells, Load Pins, Line Riding Tensiometers, Angle/List Angle, Angle/Length, Anti-Two-Block, Wind Speed, Rope Payout, Tip Height, Load Charts and Custom Applications
• 6-inch Grayscale LCD display with transflective technology for excellent sunlight and night time readability
• 3/32-inch thick polycarbonate window protects the LCD against shock from tools
• Display will data log up to 32,000 events (Events can include: out of limit alarms, productivity data, etc.)
• Data log content can be downloaded via a USB drive from the onboard USB port
• Digital addressing allows users to easily add, change, and remove sensors in the field as required
• Diagnostic mode
• Listening mode option for remote sensor monitoring
• The display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded

ProStack Cribbing Kits

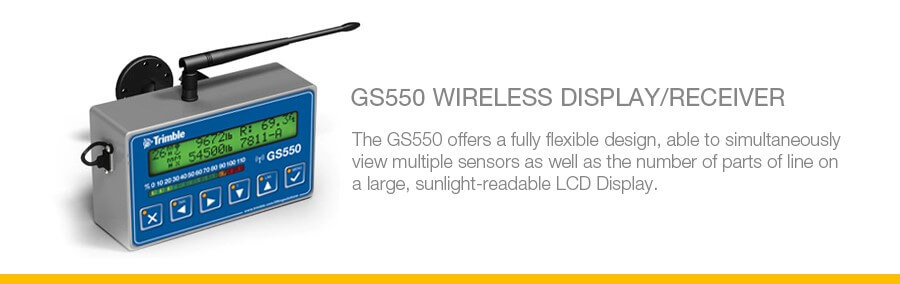

 Monitors up to 32 sensors simultaneously
 Direct Sequence-Spread Spectrum-Two Way Communication
 Reception range: 4,300 feet / 1,300 meters

• User settable limits and alarms for each installed sensor
• USB port allows uploading of load charts or download of data logger content to USB drive
• Operators can set up to 99 parts of line
• Operating Temperature: -29F to +122F / -20C to +50C
• Ram mounting bracket
• 6" long, sunlight readable 2 line x 20 character per line LCD Display
• Display will data log up to 15,000 events (Events can include: out of limit alarms, productivity data, etc.)
• Data log content can be downloaded via a USB drive from the onboard USB port
• Sensors automatically stop transmitting 5 minutes after the display is turned off to preserve sensor battery life
• Diagnostic mode
• Listening mode option for remote sensor monitoring
• The display will trip function lockouts on cranes with installed solenoid valves when limits are exceeded

GS Series Load Cells

Load Cells are available in standard sizes ranging from 2.5 tons o 85 tons. All GS Series Load Cells ship pre-calibrated, eliminating the need for test calibration weights. GS Series Load Cells are made standard from 17-4 stainless steel.

All GS Series Load Cells have Direct Sequence-Spread Spectrum-Two Way Communication with a Transmission Range of 4,300 feet. The load cell can be mounted above a ball, odd parted on the block or even parted at the boom tip. The electronics are potted for increased water proof protection and have an Operating temperature of -40°F to +185°F. GS Series Load Cells have an Accuracy of +/- 1% on a single part of line and can be manufactured in Custom sizes on request

Cable Reels

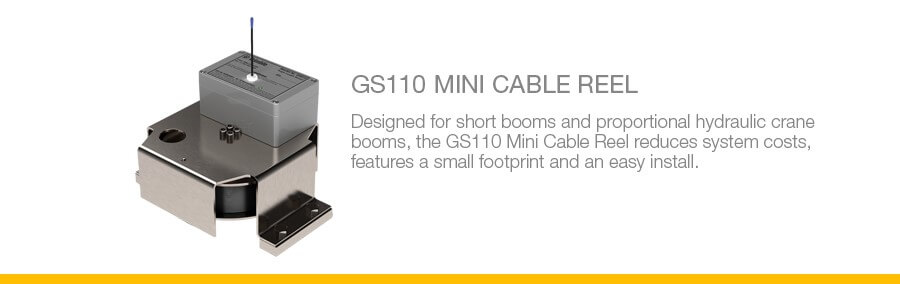

• Designed for two styles of boom: proportional hydraulic crane booms and booms with a maximum boom length of 32 feet (10 meters)
• With a small footprint, the GS110 is easy to install and reduces system costs
• The stainless-steel cable can terminate at the end of the first telescoping section on a proportional boom, eliminating the need to run the cable all the way to the boom tip and reducing cable breakage
• The extension length of the cable is 32 feet (10 meters)
• Quickly setup and adjust the boom angle from the display, eliminating the need to manually adjust the boom angle physically on the cable reel
• Angle sensor accuracy is .2°
• Left or right hand cab-mounted, the angle sensor will automatically adjust orientation

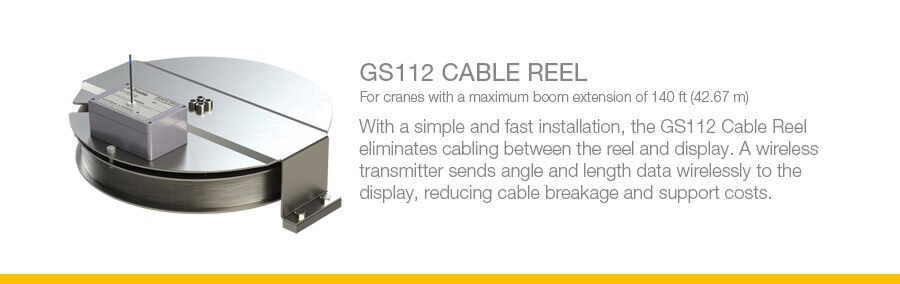

 Designed for proportional hydraulic crane booms and non-proportional booms with a maximum boom extension of 140 ft (42.67 m)
 Direct Sequence-Spread Spectrum-Two Way Communication
 Direct Sequence-Spread Spectrum-Two Way Communication

• The GS112 Cable Reel can be left or right hand cab mounted, the sensor automatically adjusts orientation
• Easy calibration, confirm retracted and extended boom lengths, and the system will automatically calculate trim & scale
• Wireless transmitter eliminates cable running from cable reel to display
• Operating temperature: -22°F to +150°F (-30°C to +65°C)
• Typical angle accuracy: 0.2°
• Measurement is optimized for crane movements, both the boom angle and boom length are measured 4 times per second

Wind Speed System

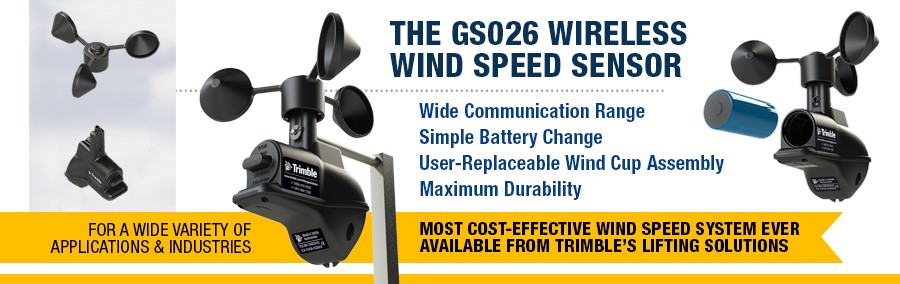

• Displays the current wind value on a large, brightly lit LED display
• Users can set a wind speed alarm level
• Users can display wind speed units in mile per hour or meters per second
• Line of sight communication range: 4,300 feet (1,300 meters)
• Trimble's Lifting Solutions GS Series Displays and Sensors feature reliable Direct Sequence-Spread Spectrum-Two Way Communication
• Standard accuracy is 3%, with the option of an NIST traceable version (with 1% accuracy)

 FCC certified
 Communication range of 4,600 feet / 1,400 meters
 Compatible with The GS820, GS550 & GS320 Displays and with the Gateway Router

• Measurement range of 0 to 150 mph / 0 to 241.4 km/h
• Typical accuracy: +/- 3 mph (+/- 4.8 km/h)
• Features a 1-year warranty

Anti-Two Block System

• Monitor one or two anti-two-block switches
• The GS series radio system utilizes Direct Sequence-Spread Spectrum-Two Way communication
• Users receive an audible and visual warning on the display when a two-block event happens
• Designed for extreme temperatures, each unit is tested in a temperature chamber from -40°F to +144°F (-40°C to +62°C)
• The A2B switch battery life is typically up to 2 years using lithium batteries
• Electronic circuitry is potted for humidity protection

• Direct Sequence-Spread Spectrum-Two Way Communication for maximum long-range performance
• Transmission Range: 4,300 feet; 1,300 meters
• Potted electronics and boot sealed piston assembly for increased water proof protection
• No locking clip required for over the road travel as the A2B Switch will go to sleep 5 minutes after the display is turned off to conserve battery life
• A2B Switch bracket design allows for easy addition and removal of A2B Switch from boom tip

Boom Angle Sensor

 Direct Sequence-Spread Spectrum-Two Way Communication
 Transmission Range: 4,300 feet; ‘1,300 meters
 Easy calibration; bring boom to zero degrees, angle sensor has leveling light for zero-degree calibration, no need to move boom to high angle for calibration

• Potted electronics for increased water proof protection
• Operating temperature: -30F to +180F; -35C to +85
• Sensor can be left hand or right hand cab mounted, will automatically adjust for the side it is installed on
• Ideal for monitoring: Main Boom, Luffing Jib, Live Mast, Barge List Angle
• Standard operating range is -180 degrees to +130 degrees, barge list angle sensor with a range from -5 degrees to +5 degrees
• Also available as a 360-degree sensor

Wireless Tensiometer

• Available for wire rope sizes of 3/8" (9.5mm) to 4" (102mm) in diameter
• Load reading precision: +/- 3% of rope capacity
• Single line capacity up to 450,000lb (250,000kg)
• Direct Sequence-Spread Spectrum-Two Way Communication
• Transmission Range: 4,300 feet (1,300 meters)
• Operating temperature: -40°F to +185°F; -40°C to +85°C
• Potted electronics for increased water protection
